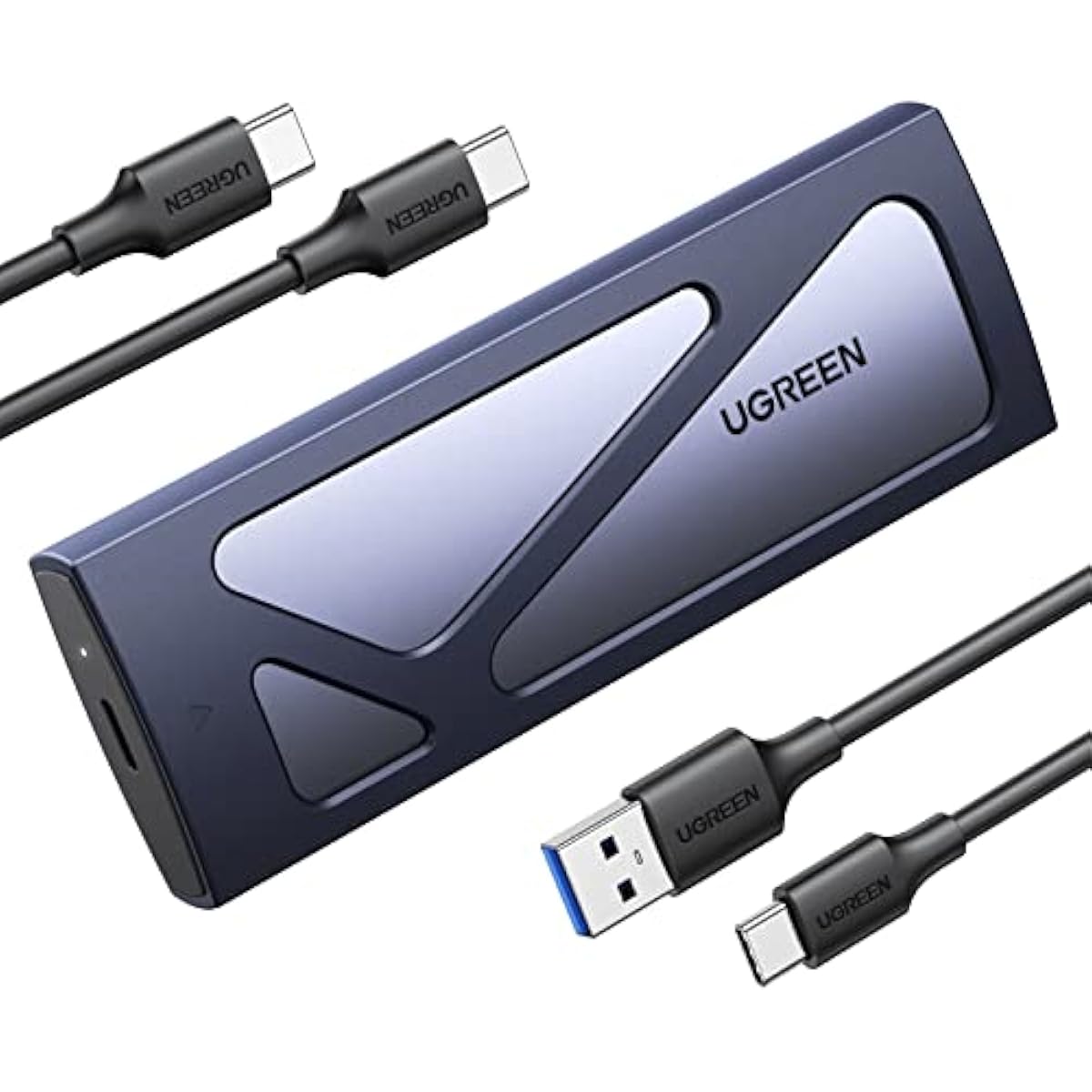

UGREEN SSD Enclosure, Tool-Free USB C External, 10Gbps M.2 NVMe to USB Adapter/Reader Supports M and B&M Keys and Size 2230/2242 /2260/2280 SSDs

Product description

UGREEN Tool-Free 10Gbps M.2 NVMe SSD Enclosure

Ugreen Tool Free 10gbps M.2 Nvme Ssd Enclosure

Merchant Video

Previous page

Next page

1 Fast Transfer of 10Gbps

2 Fast Cooling

3 Integrated RTL9210 Chip

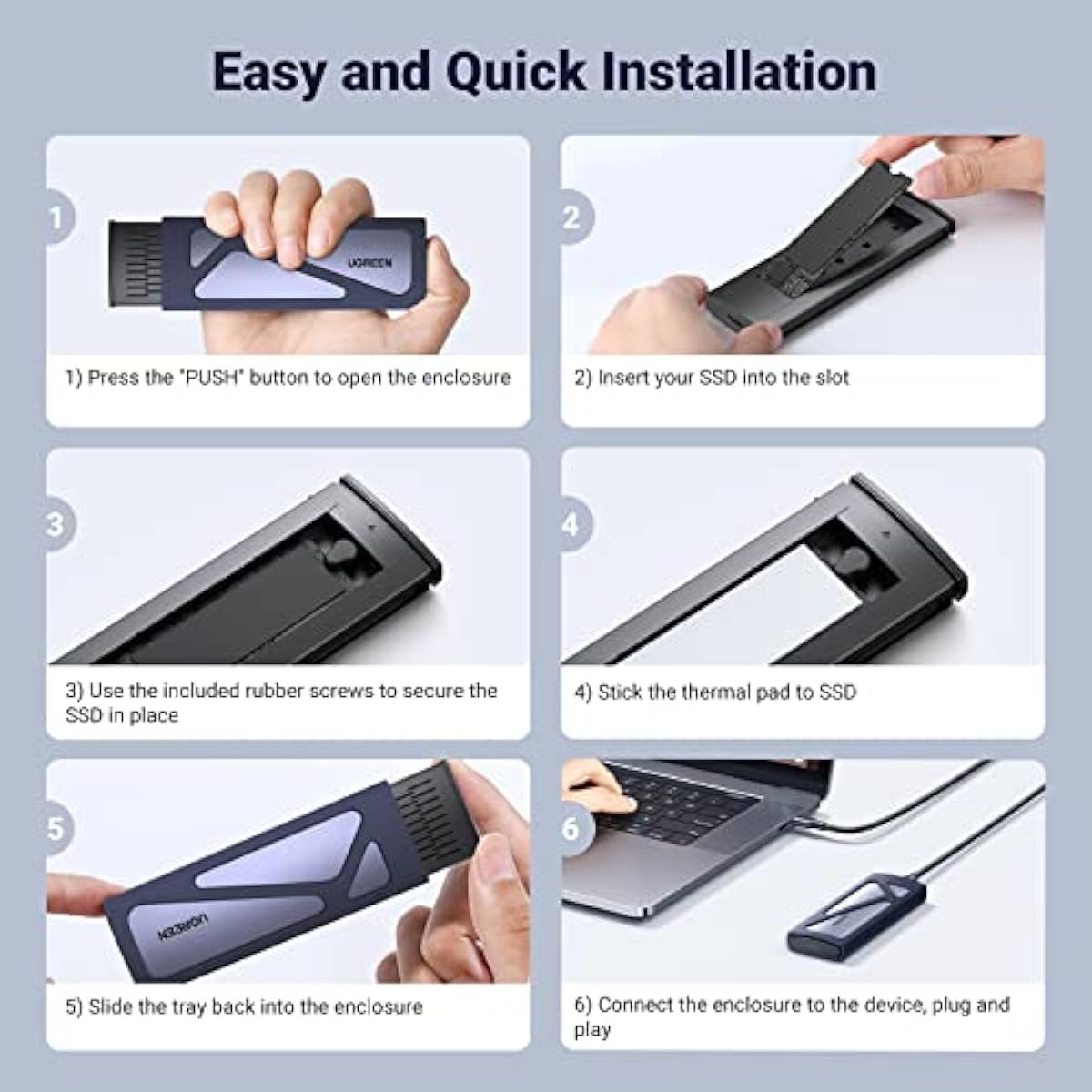

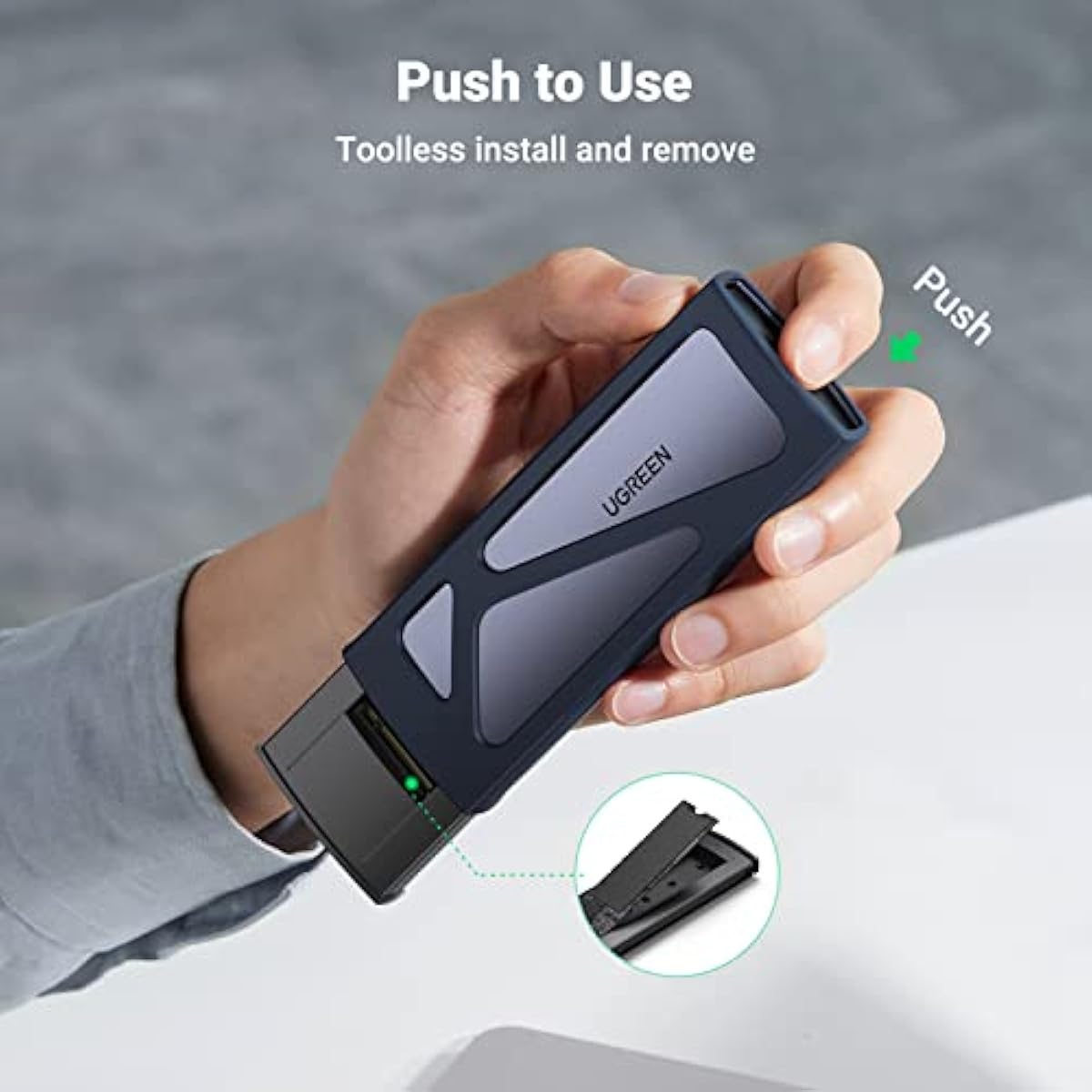

4 Toolless Push-pull Switch

Previous page

Next page

Before connecting the use of the product shell can be opened to see if the metal contacts of the hard disk part of the full access to the slot, if not the same hard disk, it should be noted that the product only supports NVME single protocol, SATA protocol hard disk can not be recognized for use

Previous page

Next page

Fast Transfer of 10Gbps: With the latest USB 3.2 Gen2, this M.2 enclosure can achieve a data transfer rate of 10Gbps

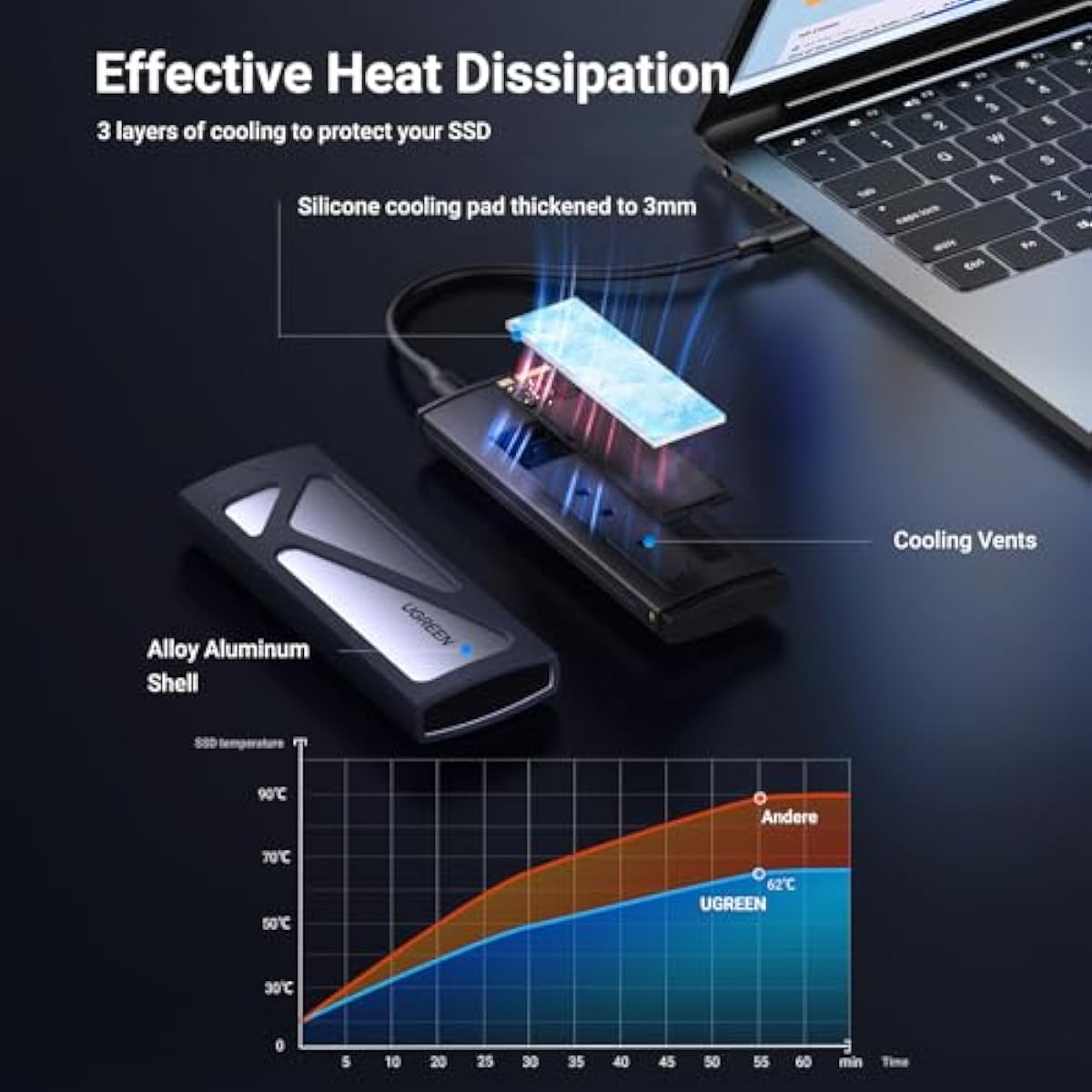

Effective Heat Dissipation:Aluminum shell with silicone thermal pad to effectively dissipate heat and protect your SSD. Note:

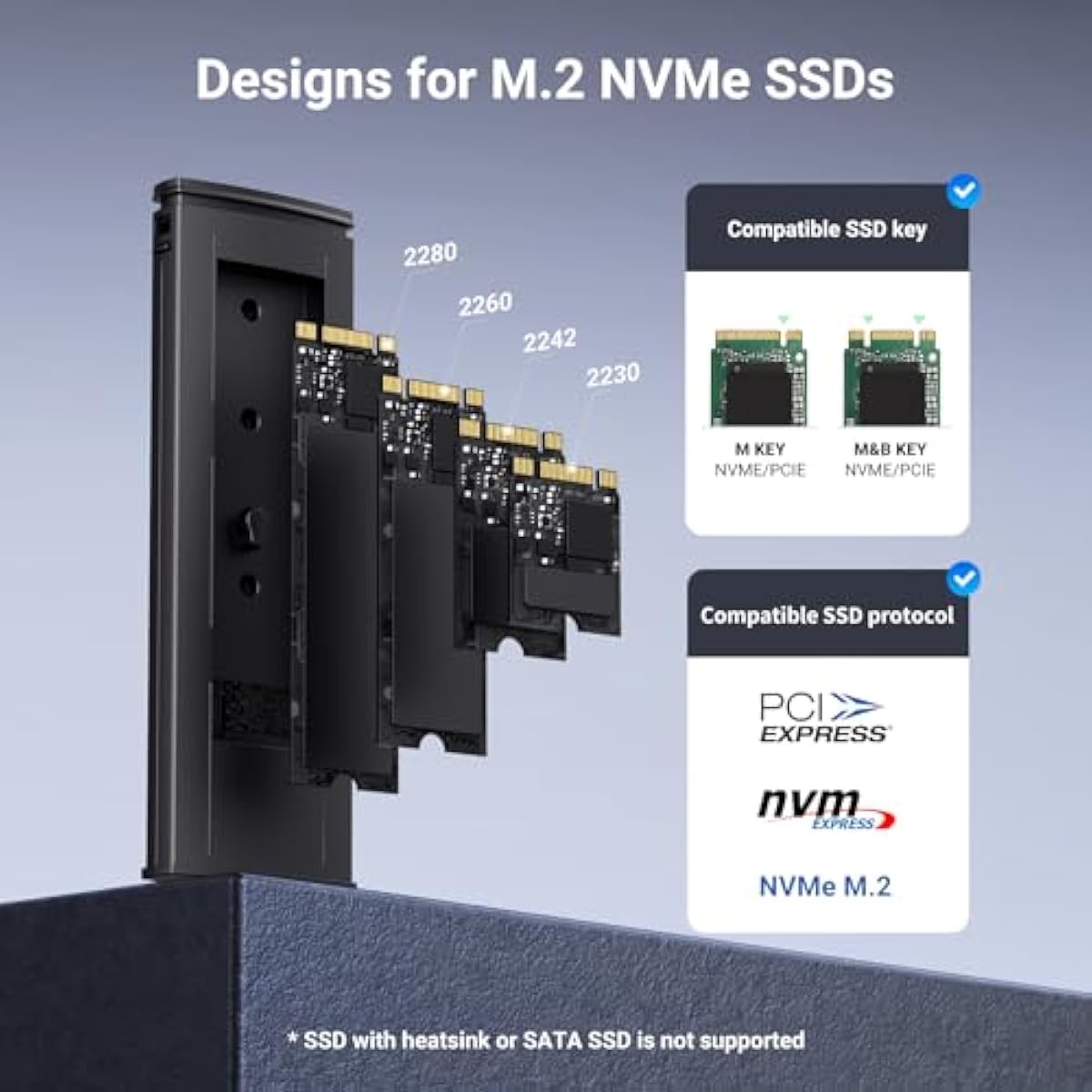

Designed for NVMe SSD:Expand your external storage

Supports all M/M&B Key NVMe SSDs up to 8TB in 2280/2260/2242/2230 (partial list)

UGREEN 10 Gbps M.2 External SSD Enclosure USB C Series

The solution to the problem that the device cannot recognize the SSD

● Confirm whether the connection between the data cable and the product and equipment is in good contact, and whether the SSD is installed correctly.

● The new SSD needs to be partitioned and formatted for the first use, otherwise the device cannot recognize the SSD.

● Confirm whether the system supports large-capacity hard drives, WinXP 32-bit systems do not support hard drives above 2TB.

● Confirm whether the hard disk format is consistent with the SSD format supported by the system. If not, please format the SSD into a hard disk format supported by the system.

Notice For UGREEN NVMe M.2 SSD Enclosure USB C 10Gbps Portable Aluminum SSD Case

● This M.2 NVMe SSD enclosure does not support M.2 SATA NGFF SSDs or SSDs with heatsink,only supports NVMe SSD with thickness less than 3.5mm.

● To perfectly reflect product performance (up to 10Gbps), please connect this M.2 SSD enclosure to a device with a USB 3.2 gen 2 standard interface.

● When you need to take out the SSD, please perform a safe removal operation on the device before disconnecting it from the device. Do not remove the NVMe M.2 enclosure and SSD forcibly to avoid data loss and hard drive damage.

● When this SSD enclosure M.2 NVMe is copying data, do not forcibly disconnect the device to avoid file loss and hard drive damage.
